Everything you need to know about Ground Source Heat Pumps

A major renewable source of heat for homes can actually be found in the ground. One of the best methods of extracting and harnessing this valuable energy is a Ground Source Heat Pump (GSHP) which can be used for producing hot water for domestic use, showers and hot taps as well as for central heating systems and, occasionally, for operating warm air heating systems. It sounds like a simple solution to all your heating problems but there are a number of caveats you need to consider before you take the heat pump plunge.

How do Ground Source Heat Pumps Work?

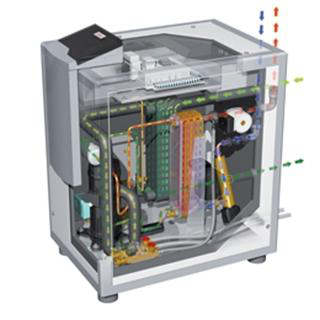

The heat in your ground remains fairly constant, even through the winter months, producing small amounts of constant warmth that can be magnified by the appropriate machinery. Pipes are buried in the earth outside your house and a mixture of water and antifreeze is circulated around them. The ground heat gets absorbed into the surrounding mixture and is transported to a heat exchanger and from there into the heat pump that passes it to the heating sources in your home, such as radiators. While the heat produced from the ground is initially pretty low, it is compressed to produce higher temperatures.

The heat pump works as a continuous process with the mixture circulating back down into the ground to absorb more energy once it has been used to heat your property. A flat array can be buried about 2m deep throughout your garden, but a vertical one can be drilled down up to 100m. Whether it is a suitable method of heating your home depends on the size of garden you have and the depth of your soil. A larger array buried in the ground helps you to produce more heat. If space is limited, a vertical bore hole can be drilled down into the earth. Another factor you need to consider is how you are currently heating your house.

The Benefits of Ground Source Heat Pumps

• If you use it to replace your conventional heating, either by gas or electric boiler, it can dramatically reduce your energy bills. How much you will save will depend on the initial cost of installation and the type of fuel source being replaced.
• You might be able to benefit from the government’s Boiler Upgrade Scheme (BUS) which offers home owners a grant of £7500 to help towards the upfront costs. You don't have to pay this money back and it's simple and easy to recieve.
• Although it is also dependent on the type of fuel you are replacing, you could significantly reduce your carbon emissions and contribute to halting global warming.
• Ground Source Heat Pumps (GSHPs) are very low maintenance and easy to run once installed, providing heat for radiators and hot water.
• The pumps deliver heat at much lower temperatures than normal gas or electric systems, so you may have to have them on for longer periods of time.
• GSHP systems offer the most efficient solution for heating your home or business.


Deciding if a Ground Source Heat Pump is for you

There are a number of things to consider before you decide to take on something like a Ground Source Heat Pump. First of all, your house needs to be well insulated. GSHPs produce heat at much lower temperatures than normal systems and so you would be well advised that you have sufficient floor, wall cavity and loft insulation as well as double glazing, to make sure all that heat is kept in. How you are going to heat your house is another area to think about carefully.

Ground Source Heat Pumps work better with things like under floor or warm air heating rather than traditional radiators. Finally, the ground needs to be suitable. You need to check if you can get diggers and drills into the garden as well as find out about the nature of the ground. For example, if there is a lot of rock beneath the initial layer of soil then it might not benefit from a vertical bore.

Cost and ROI of a Ground Source Heat Pump

They are still relatively expensive, and you won’t start to see a return on investment until after a fair number of years. On average you will be spending around £18-35,000 for an installation. You will still need to pay for electricity to run the pump and savings will depend on a number of factors, including the existing fuel and the heating system that you are replacing. You may be eligible for the Boiler Upgrade Scheme which offers a grant of £7500 for residential home owners looking to install a GSHP system.
Find out more about heat pump costs and savings here.

Types of Ground Source Heat Pumps

Ground Source Heat Pumps can utilise the heat from both water and the earth, and there are a number of different varieties. A closed loop system is the most common, using a contained water and antifreeze mixture. An open loop system uses water from the surrounding area but this needs to meet certain requirements such as being low in chlorine.

• Open or Closed Loop Ground Source Heat Pump: Usually buried flat around 2m in a decent sized garden.
• Single Borehole Open or Closed Loop GSHP: A vertical installation that can be drilled up to 100m down into the ground.
• Single Well Open or Closed Loop WSHP: If you have an underwater source such as a well, then the loop can be connected to this.
• Lake or Pond Source Open or Closed Loop WSHP: If you have a lake or large pond nearby, then it works the same as a Ground Source Heat Pump, but in water.


Single Borehole Closed Loop GSHP	Single Borehole Closed Loop GSHP	Single Well Open Loop WSHP
Lake or Pond Source Open Loop WSHP	Open Loop Dual Well WSHP	Closed Loop Single Well GSHP/WSHP
	Closed Loop Water Source GSHP/WSHP

Getting your GSHP Installed

Major work has to be undertaken if you want to install a Ground Source Heat Pump, including checking whether you need planning permission. Workmen and diggers (possibly even a crane) will need to be able to access the area where you are going to have the heat pump installed.

Remember, the first thing you need to consider, which may add cost onto your conversion to a heat pump, is whether your house is ready for it – have you got the right central heating system installed and is your property insulated to a high enough standard? There are a number of companies that specialise in putting in heat pumps and they will be able to advise if your property and garden would suit such an installation.
